JLG® —Emergency Descent Procedure – Ecolift

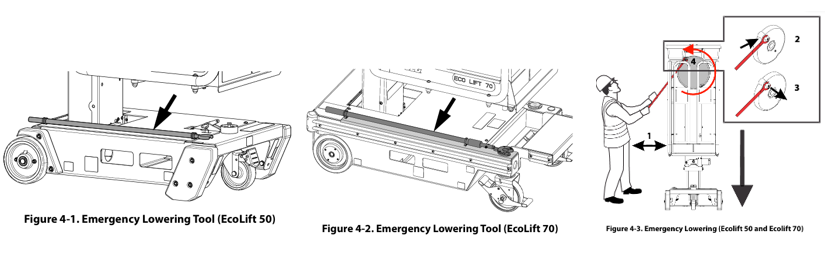

Locate emergency lowering tool on chassis, remove from machine. (See Figure 4-1. and Figure 4-2.)

Instructions

1. Turn the shaft lock counter-clockwise to extend and retract the lowering tool shaft, and clockwise to lock to the desired position. Stand to side of machine.
2. Attach `hook’ end of emergency lowering tool to flywheel handle in platform releasing handle.
3. Turn the fly wheel counter-clockwise.
4. To bring platform down. (See Figure 4-3. ) 4-2

• Keep clear of platform as it descends.
• Depending on the height of the elevated platform, it may be necessary to extend the shaft of the lowering tool.
