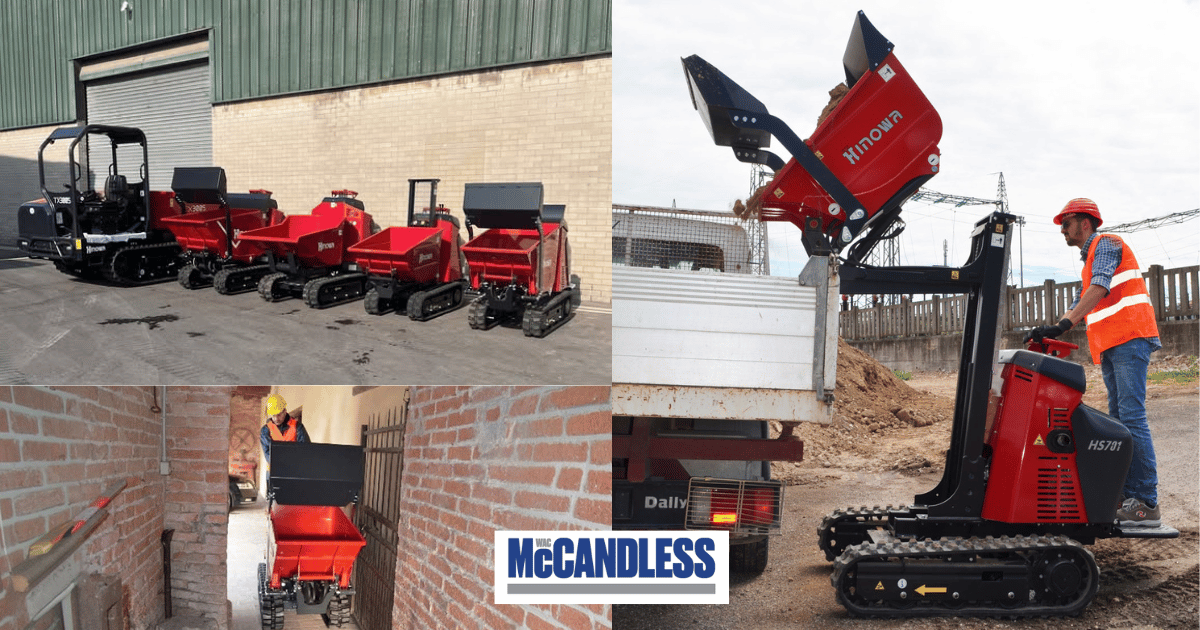

Mini Dumper HS701 by Hinowa s.p.a | Built for the Groundworks That Others Can’t Reach
When access is tight and the ground gets difficult, the Hinowa HS701 is designed to keep material moving.
With its compact tracked design and low ground pressure, the HS701 is ideal for
Particularly where narrow access, uneven terrain or soft ground can make conventional dumpers difficult to use.
đŞ 700 kg load capacity
đ Tracked for improved traction on difficult ground
âď¸ Compact width for restricted-access sites
â°ď¸ Designed for uneven, muddy, sandy and sloping terrain
đ Self-loading and high-tip options available
From moving soil, sand and gravel around landscaping projects to transporting materials along narrow paths and difficult construction sites, the HS701 provides a compact and highly maneuverable solution.
| Petrol engine | Honda GX270 – GX390 |
| Pistons and displacement | single-cylinder 270 cc (GX270) – 389 cc (GX390) |
| Max gross power | 8,4 HP – 6,3 kW@3600rpm (GX270) – 11,7 HP – 8,7 kW@3600rpm (GX390) |
| Starting | manual (GX270) – electric (GX390) |
| Granted noise level (petrol engine) | Lwa 99dB |
| Diesel engine | Kubota OC95 |
| Pistons and displacement | single-cylinder 416 cc |
| Max gross power | 9,4 HP – 7 kW@3600rpm |
| Starting | electric |
| Granted noise level (diesel engine) | Lwa 101dB |
| Max. inclination | 15° (diesel version) |
| Type distributor | mechanical |
| Hydraulic pumps: number and type | n° 3 gear pumps |
| Track tensioner | grease |
| Track width | 180 mm |
| Rollers per side | 3 |
| Translation speed petrol engine | 2,2 – 3,3 km/h (GX270) / 2,8 – 4 km/h (GX390) |
| Translation speed diesel engine | 2,2 – 3,3 km/h |
| Variable width undercarriages as std. | 758 – 1058 mm |
| Capacity | 700 kg |
| Dumper bed capacity: rated volume | 0,34 m3 |
| Dumper bed capacity: rated volume | 0,28 m3 |
| Operating weight – petrol engine | 600 kg (fixed undercarriage) – 680 kg (widening undercarriage) (GX270) / 640 kg (fixed undercarriage) – 720 kg (widening undercarriage) (GX390) |
| Operating weight – diesel engine | 655 kg (fixed undercarriage) – 735 kg (widening undercarriage) |
