When space is limited, having the right excavator can make all the difference. The Komatsu PC138US-11E0 Short Tail Excavator combines the digging and lifting performance of a conventional excavator with a compact short-tail design for the Northern Ireland market, making it particularly well suited to urban construction, roadworks and projects where working space is restricted.

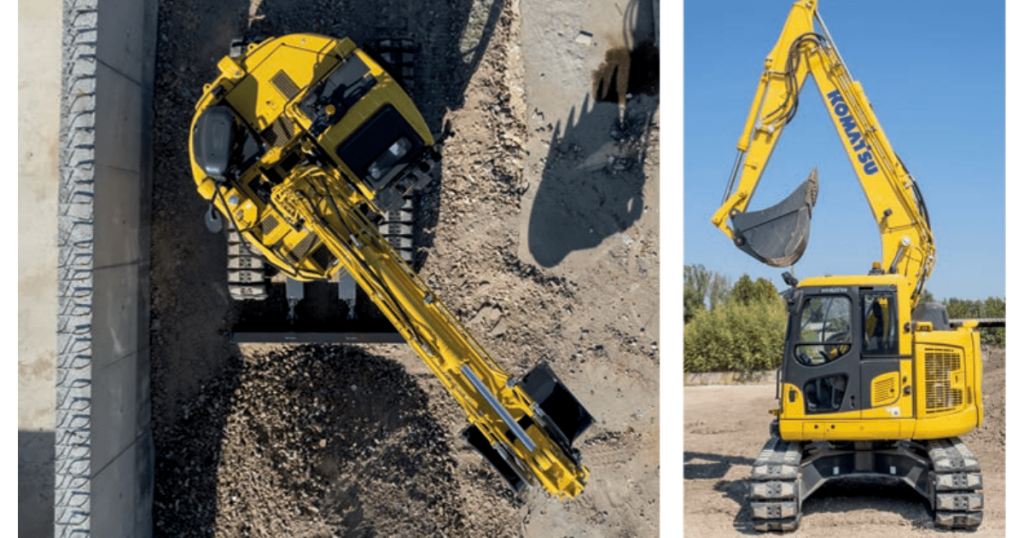

The PC138US-11E0 is designed around a short-tail configuration, with a tail swing radius of approximately 1.48m. Its rounded upper structure allows the machine to work close to obstacles and in restricted areas while reducing the risk of the rear of the machine striking surrounding objects.
This makes it an excellent choice for applications such as:
Making it a popular overall choice of Excavator in Northern Ireland
Despite its compact rear profile, the PC138US-11E0 delivers 72.6 kW (97.3 HP) of engine power from its Komatsu SAA4D95LE-7 engine. The machine has an operating weight range of 14 – 16 tonnes, depending on configuration.
With a maximum bucket capacity of 0.72 m³ and a maximum digging depth of approximately 5.9 m, it provides the reach and digging capability needed for demanding excavation work.
| Specification | PC138US-11E0 |
|---|---|
| Engine power | 72.6 kW / 97.3 HP @ 2050rpm |
| Operating weight | 14.1–15.8 tonnes |
| Maximum bucket capacity | 0.72 m³ |
| Maximum digging depth | 5.9 m |
| Tail swing radius | 1480 mm |
| Maximum pump flow | 242 l/min |
| Fuel tank | 200 litres |
| Emissions | EU Stage V |

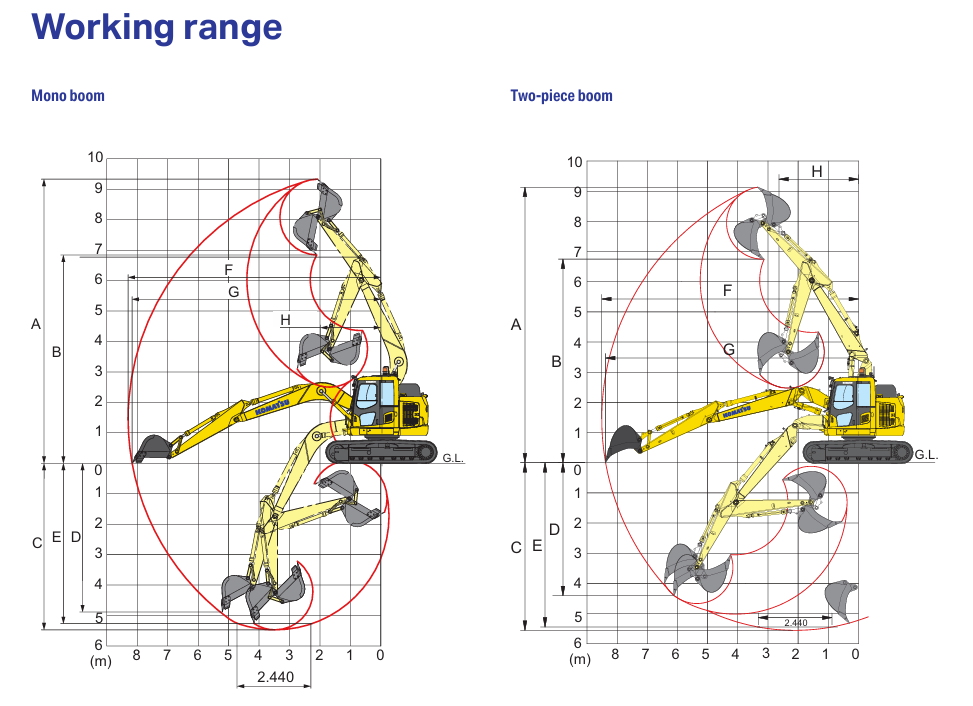

PC138US-11E0 Working Range
The PC138US-11E0 uses Komatsu’s HydrauMind Closed-Centre load-Sensing Hydraulic System, designed to provide responsive and precise operation.
The hydraulic system provides a maximum pump flow of 242 litres/min, helping the machine deliver smooth attachment operation and strong digging performance. An additional circuit with proportional control can also be installed, increasing the machine’s versatility for different attachments.
Productivity isn’t only about machine performance. The PC138US-11E0 has been designed to give operators a comfortable and controlled working environment.

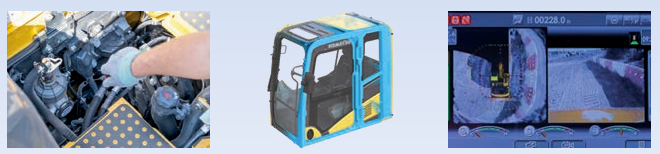

Komatsu also offers KomVision,
uses high-definition cameras to provide a real-time bird’s-eye view around the machine on the cab monitor. This can help operators monitor their surroundings before moving or carrying out operations.
Komatsu SpaceCab™
The ROPS cab has a tubular steel frame and provides high shock absorbency, impact resistance and
durability. The seat belt is well designed to keep the operator in the safety zone of the cab in the
event of a rollover. Optionally the cab can be fitted with a Falling Object Protective System (FOPS) with
openable front guard
Safe maintenance
Thermal guards around high temperature areas ofthe engine, protected fan belt and pulleys, a pump/
engine partition that prevents hydraulic oil from spraying onto the engine, and exceptionally sturdy
handrails: in Komatsu tradition, the highest safety level is provided for a fast and smooth maintenance.
Komtrax
KOMTRAX™ lets you monitor all the essential information about your Komatsu equipment directly on your computer, smartphone or tablet. When the system is activated on a machine, the information collected by Komtrax is transmitted on a regular basis and is accessible on the Komtrax website.
The PC138US-11E0 meets EU Stage V emissions requirements, making it suitable for modern construction projects where emissions compliance is an important consideration. The machine incorporates a Komatsu aftertreatment system and Diesel Particulate Filter (DPF).
The machine is also capable of using paraffinic fuels such as HVO, GTL and BTL when they conform to the specified EN15940:2016 requirements. Meeting the compliance requirements to work in the Northern Ireland
With its combination of short-tail performance, digging power, operator visibility and Stage V compliance, the Komatsu PC138US-11E0 is a versatile excavator for contractors working in environments where space and productivity are equally important.
Whether you’re excavating alongside roads, working in urban areas, carrying out infrastructure projects or tackling demanding earthmoving applications in Northern Ireland, the PC138US-11E0 provides the performance of a 14 to 16 ton -class excavator while keeping its rear profile compact.
