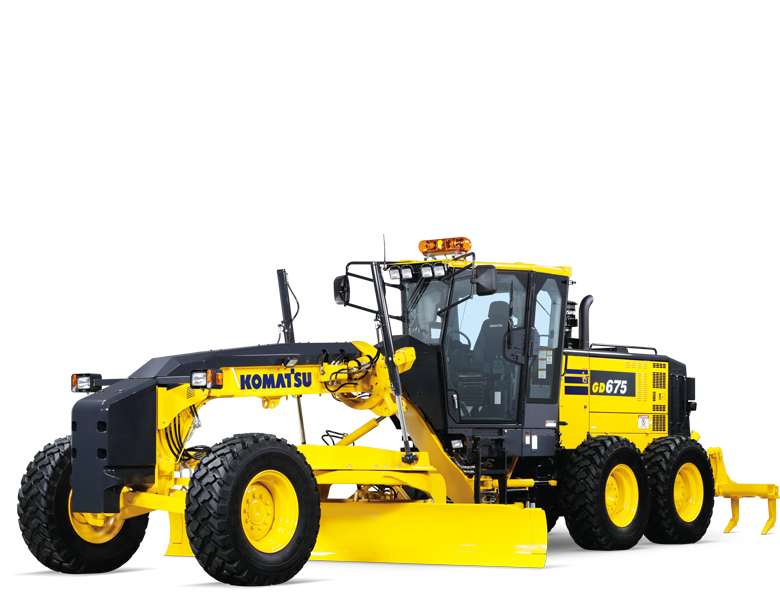

GD675-7

Motor Graders

GD675-7

Fingertip controlled EPC work equipment

Its powerful and efficient EU Stage V emission-certified engine and a “Heavy-Duty” aftertreatment system, which combines a Komatsu Diesel Particulate Filter (KDPF) with a Selective Catalytic Reduction (SCR) system, allow this latest addition to Komatsu’s motor grader line-up to offer additional choices to customers.

Significantly improved operating comfort
Along with the new EU Stage V engine, a strong development focus was put on operator comfort. The complete redesign of the controls to a fingertip system reduces operator arm movement by over 90%. Thanks to this, and combined with the new transmission controls, the new stop-at-center articulation and a much better visibility, the operator’s stress and strain is greatly reduced.

MOTOR GRADERS

Dual-mode transmission
The Komatsu industry-exclusive dual-mode transmission (8 forward, 4 reverse), allows operators to benefit from the high travel speed and the reduced fuel consumption provided by a direct drive, and from the increased tractive effort and control of a torque converter.
Transmission shift lever
A new transmission shift lever, with a finger-operated Forward-Neutral-Reverse switch, simplifies operations and dramatically reduces the amount of required hand movement. The new inching pedal allows precise control of the machine.
New Features & Benefits
  • Fingertip controlled EPC work equipment – 92% reduction of arm/hand movement.
  • Sub-steering lever – Allows the operator to keep hands on the low-effort, work equipment levers and make small steering adjustments, while operating without having to turn a steering wheel.
  • Right sized” steering wheel – Slightly smaller, it provides more visibility and operator space in the cab. Convenient for those long, “blade-up and roading” trips.
  • New multi-position adjustable arm rests and LH/RH consoles – With electric power raise/lower and mechanical fore/aft adjustments to precisely match operator preferences.
  • High-capacity, air-suspension seat – Softens in-cab machine vibrations for the operator.
  • Stop-at-centre articulation feature – Simplifies operations.
  • Operator presence monitoring system – Alerts if the operator leaves the seat without controls properly locked.
  • Transmission shift lever with finger-operated Forward-Neutral-Reverse switch – Simplifies operations and dramatically reduces required hand movement
  • Topcon Plug & Play – For easy and durable installation of Topcon Machine Control systems.
Get The Brochure

Fingertip controlled EPC work equipment

Its powerful and efficient EU Stage V emission-certified engine and a “Heavy-Duty” aftertreatment system, which combines a Komatsu Diesel Particulate Filter (KDPF) with a Selective Catalytic Reduction (SCR) system, allow this latest addition to Komatsu’s motor grader line-up to offer additional choices to customers.

Significantly improved operating comfort
Along with the new EU Stage V engine, a strong development focus was put on operator comfort. The complete redesign of the controls to a fingertip system reduces operator arm movement by over 90%. Thanks to this, and combined with the new transmission controls, the new stop-at-center articulation and a much better visibility, the operator’s stress and strain is greatly reduced.

MOTOR GRADERS

Dual-mode transmission
The Komatsu industry-exclusive dual-mode transmission (8 forward, 4 reverse), allows operators to benefit from the high travel speed and the reduced fuel consumption provided by a direct drive, and from the increased tractive effort and control of a torque converter.
Transmission shift lever
A new transmission shift lever, with a finger-operated Forward-Neutral-Reverse switch, simplifies operations and dramatically reduces the amount of required hand movement. The new inching pedal allows precise control of the machine.
New Features & Benefits
  • Fingertip controlled EPC work equipment – 92% reduction of arm/hand movement.
  • Sub-steering lever – Allows the operator to keep hands on the low-effort, work equipment levers and make small steering adjustments, while operating without having to turn a steering wheel.
  • Right sized” steering wheel – Slightly smaller, it provides more visibility and operator space in the cab. Convenient for those long, “blade-up and roading” trips.
  • New multi-position adjustable arm rests and LH/RH consoles – With electric power raise/lower and mechanical fore/aft adjustments to precisely match operator preferences.
  • High-capacity, air-suspension seat – Softens in-cab machine vibrations for the operator.
  • Stop-at-centre articulation feature – Simplifies operations.
  • Operator presence monitoring system – Alerts if the operator leaves the seat without controls properly locked.
  • Transmission shift lever with finger-operated Forward-Neutral-Reverse switch – Simplifies operations and dramatically reduces required hand movement
  • Topcon Plug & Play – For easy and durable installation of Topcon Machine Control systems.

Engine Power: 165/221 kW/HP

Blade: 4270 x 580 x 25 mm

Operating Weight: 17,35-19,22 t.
